Multi-Objective Photoreal Simulation (MOPS) Dataset for Computer Vision in Robotic Manipulation

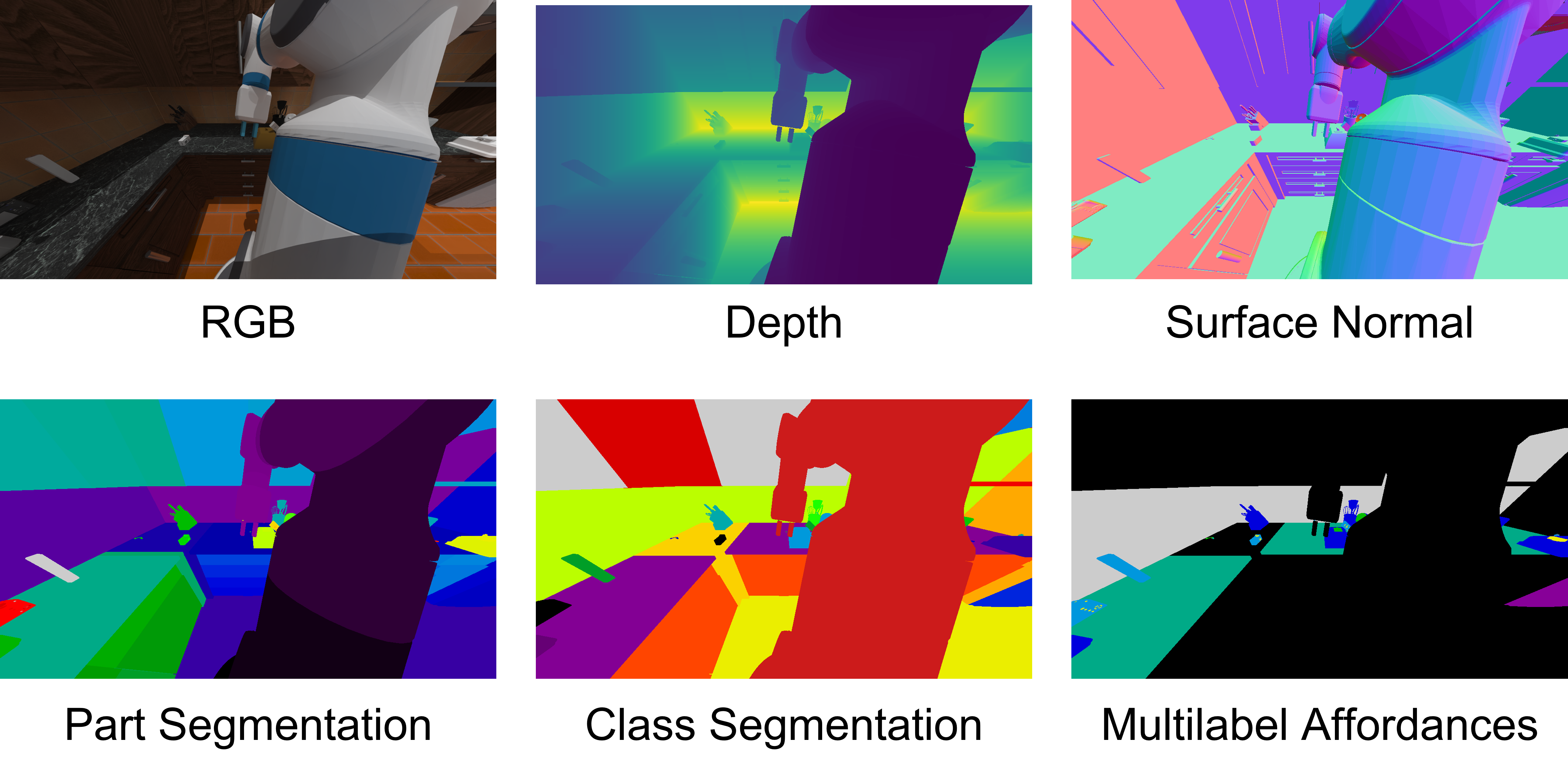

MOPS Dataset Overview

Abstract

We introduce the Multi-Object Photoreal Simulation (MOPS) dataset, addressing the lack of computer vision datasets specifically designed for robot manipulation. MOPS provides photorealistic simulated environments with comprehensive ground truth annotations, using a zero-shot asset augmentation pipeline based on large language models. This pipeline annotates 3D assets at the part level and normalizes assets across libraries. The dataset delivers pixel-level segmentation for critical robotics tasks including part segmentation and affordance prediction. By combining detailed annotations with photorealistic simulation, MOPS generates diverse indoor scenes to accelerate progress in robot perception, manipulation, and interaction with real-world environments.

🚧 Alpha Release Notice

Important: MOPS is currently under active development and should be treated as an early alpha release. The public API may change, and some features are still in development.

Currently, the code is split into two repositories:

mops-data - Photorealistic image generation in ManiSkill3 ✅
mops-casa - Full robot trajectories in RoboCasa 🚧 Coming Soon

🎯 Key Features

🎨 Photorealistic Simulation

High-quality visual rendering optimized for computer vision applications in robotic manipulation tasks.

🤖 LLM-Powered Annotation

Zero-shot asset augmentation pipeline using large language models for comprehensive part-level annotations.

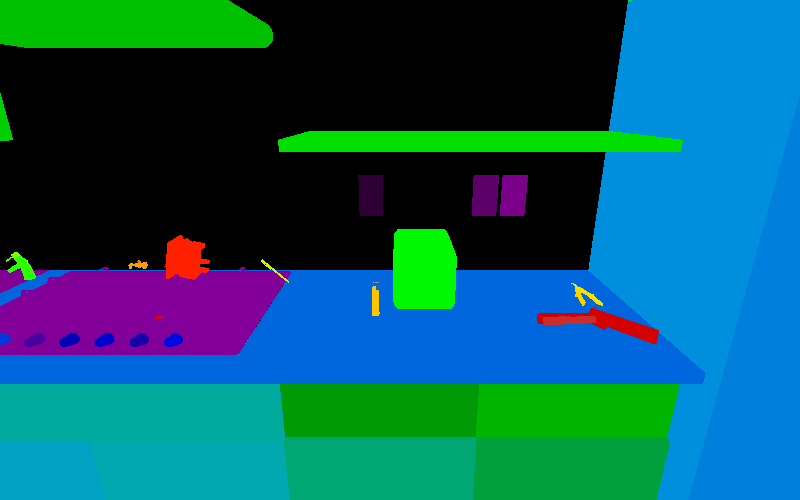

🎯 Pixel-Level Segmentation

Detailed ground truth for part segmentation and affordance prediction tasks.

🏠 Diverse Environments

Rich indoor scenes including kitchen environments, cluttered tabletops, and single object scenarios.

🔧 Technical Overview

Asset Management: Normalized asset pipeline across multiple 3D libraries with automatic part-level annotation and semantic understanding.

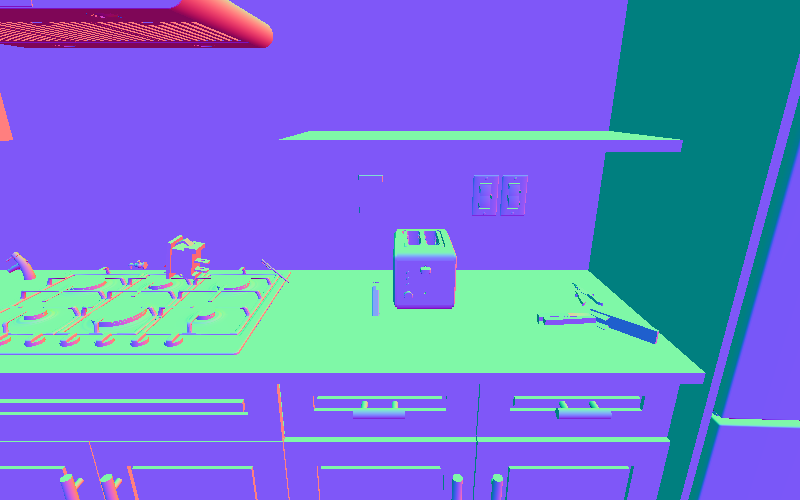

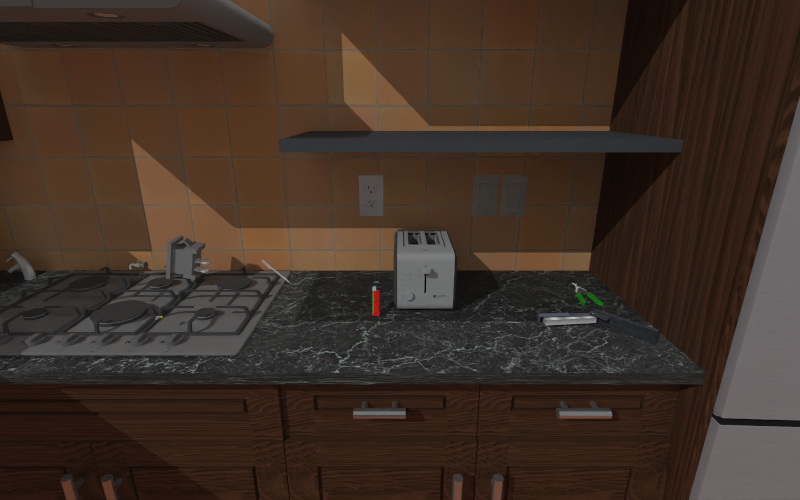

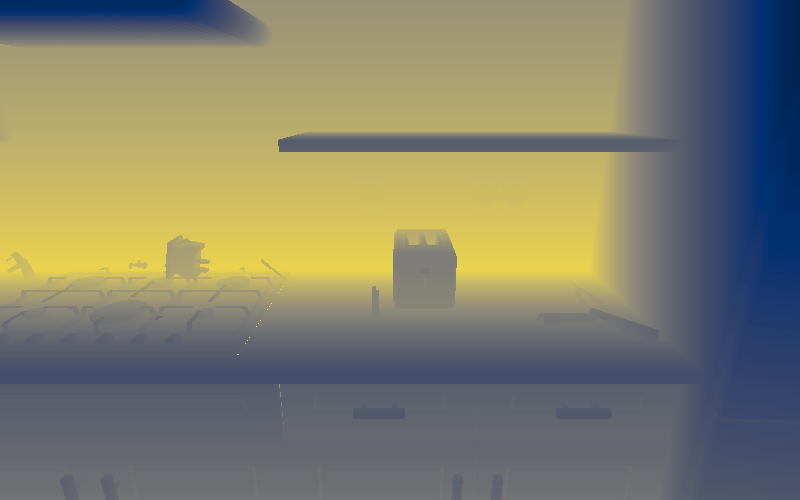

Multi-Modal Annotations: Comprehensive ground truth including RGB, depth, segmentation masks, affordance maps, and 6D pose information.

Simulation Framework: Built on ManiSkill3 and SAPIEN for physics-accurate simulation with photorealistic rendering capabilities.

🚀 Getting Started

Prerequisites

Python 3.10
CUDA-compatible GPU
16GB+ RAM recommended

Quick Installation

conda create -n mops python=3.10
conda activate mops

pip install mani_skill
git clone https://github.com/LiXiling/mops-data

cd mops-data
pip install -e .

📖 Full Installation Guide →

📊 Dataset Highlights

Photoreal Quality: Leverages advanced rendering for realistic visual data
Comprehensive Annotations: Part-level segmentation and affordance labeling
Scalable Pipeline: Automated asset processing and scene generation
Robot-Centric Design: Tailored for manipulation and interaction tasks

📝 Citation

If you use MOPS in your research, please cite our work:

@article{li2025mops,
  title={Multi-Objective Photoreal Simulation (MOPS) Dataset for Computer Vision in Robotic Manipulation},
  author={
    Maximilian Xiling Li and
    Paul Mattes and
    Nils Blank and
    Korbinian Franz Rudolf and
    Paul Werker L\"odige and
    Rudolf Lioutikov
  },
  year={2025}
}

🏛️ Acknowledgments

This work is supported by the Intuitive Robots Lab at KIT, Germany.
